Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications

Brand Name : Minfeng

Model Number : armored cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

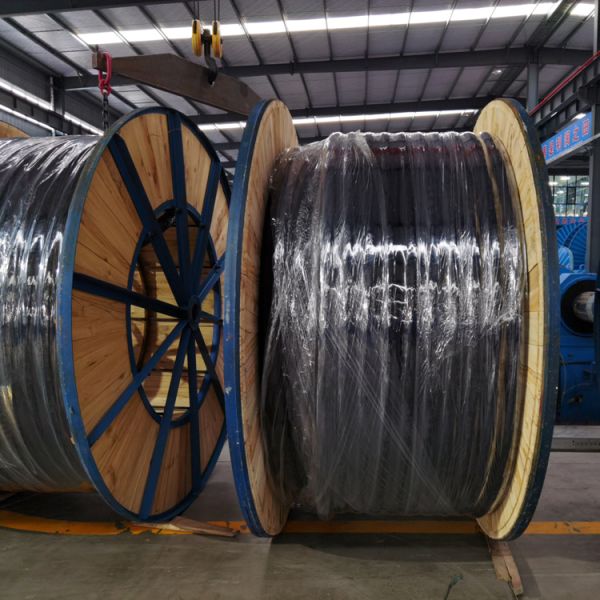

Packing : Wooden Reel

Standard : AISI, ASTM, BS, DIN, GB, JIS

Cabletype : Armoured

Cable size : Varies from 1.5mm² to 1000mm²

Insulation material : PVC, XLPE, or PE

Conductor material : Copper or Aluminium

Contact Now

Low Voltage CXV CU XLPE PVC Electrical Armoured Power Cable
Product Overview
Size Range 1.5-1000mm²
Conductor Material Copper/Aluminum
Insulation Material XLPE/PVC
Jacket PVC
Application Construction & Industrial
Type Low Voltage
Model Number LV-YJV/YJLV
Voltage 0.6/1KV
Product Details
0.6/1kv Flexible Copper/Aluminum 1C 2C 3C 4C 3+1C 4+1C 3+2C SWA/STA PVC XLPE EPR Insulated PVC Sheathed Electrical Power Cable Wire
  • Conductor: Copper/Tinned Copper/Aluminium
  • Insulation/Jacket: XLPE/PVC
  • Armor: SWA (Steel Wire Armored) / STA (Steel Tape Armored) or Non-Armored
  • Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
  • Section Area: 1.5mm²-1000mm²
  • Standard: IEC 60502, BS 7870, GB/T12706 or other
  • Packaging: Iron Or Wooden Drum
  • Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and more
We can customize the size according to your requirement.

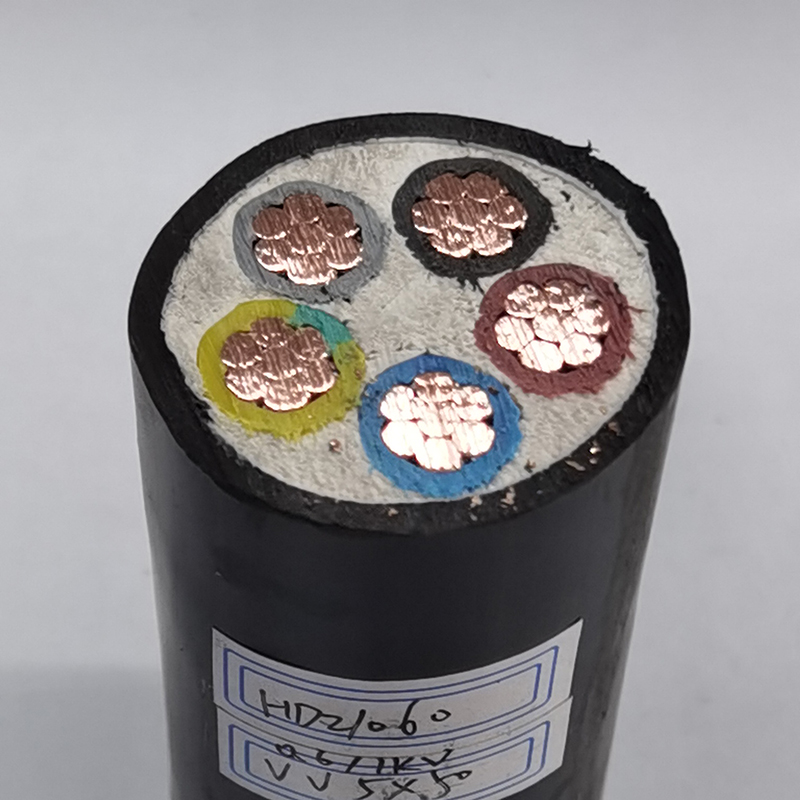

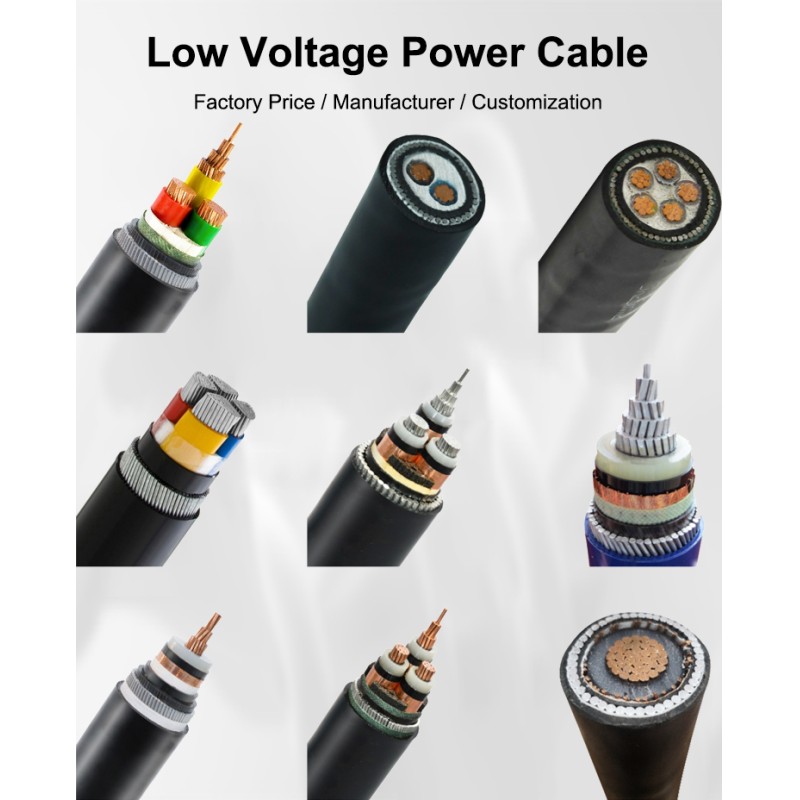

Product Images
Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications Low Voltage Armoured Power Cable with Copper/Aluminum Conductor and XLPE/PVC Insulation for 1.5mm² to 1000mm² Applications
Technical Specifications
Cross Section (mm²) Stranding (mm) Approx Weight (Kg/Km) Approx Overall Diameter (mm) Current Rating Laid Direct (Amp)
4 x 2.5 7/0.53 351 12.88 32
4 x 2.5 7/0.67 429 14.43 42
4 x 6.0 7/1.04 670 17.87 69
4 x 10 7/1.35 998 20.1 92
4 x 16 7/1.70 1,272 22.4 119
4 x 25 7/2.14 1,940 27 152
4 x 35 7/2.52 2,390 30.1 182
4 x 50 19/1.78 2,925 31.5 217
4 x 70 19/2.14 4,200 37.4 266
4 x 95 19/2.52 5,335 40.9 319
4 x 120 37/2.03 6,925 46.6 363
4 x 150 37/2.25 8,200 50.2 406
4 x 185 37/2.52 9,975 55.8 458
4 x 240 61/2.52 12,700 62.5 529
4 x 300 61/2.85 15,275 67.4 592
4 x 400 61/3.20 19,875 77 667
No. Cores Nominal Conductor Area (mm²) No. and Diameter of Wires (no./mm) Radial Thickness of Insulation (mm) Diameter Under Armour (mm) Approximate Weight (kg/km)
4 1.5 7 / 0.53 0.8 11.8 216
4 2.5 7 / 0.67 0.8 12.8 267
4 4 7 / 0.85 1 15.3 379
4 6 7 / 1.04 1 16.7 477
4 10 7 / 1.35 1 18.9 669
4 16 7 / 1.70 1 21.5 932
4 25 7 / 2.14 1.2 25.6 1372
4 35 7 / 2.52 1.2 28.4 1785
4 50 (S) 19 / 1.78 1.4 32.7 2388
4 70 (S) 19 / 2.14 1.4 36.7 3269
4 95 (S) 19 / 2.52 1.6 42.2 4437
4 120 (S) 37 / 2.03 1.6 45.9 5469
4 150 (S) 37 / 2.25 1.8 51.1 6690
4 185 (S) 37 / 2.52 2 56.3 8287
4 240 (S) 61 / 2.25 2.2 63.3 10766
4 300 (S) 61 / 2.52 2.4 70.2 13373
4 400 (S) 61 / 2.85 2.6 79.7 16968
4 500 (S) 61 / 3.20 2.8 88 21161
