ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor

Brand Name : Minfeng

Model Number : ACSR

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Exoprt Experience : South America, Africa, Middle East Ect

Conductor Shape : Circular

Free Sample : yes

Insulating Material : Bare

Cores No : 1-36

Application : Power Transmission

Material Of Conductor : Aluminium

Contact Now

AAAC, AAC, ACSR Conductors Low Voltage Power Station Bare Aluminum Overhead Transmission Line Stranded
Product Overview

Aluminum Conductors Steel-Reinforced (ACSR) are high-performance overhead transmission conductors designed for power distribution applications.

Key Specifications
Conductor Material Aluminum Conductors Steel-Reinforced
Insulation Material No insulation material
Jacket No sheath
Application Overhead
Type Low Voltage
Place of Origin Hebei, China
Model Number ACSR
Brand Name Minfeng
Color Silver white
Standard IEC 61089, DIN 48204, ASTM B232, BS215
Certificate ISO
Type Bare Cable
Available Conductor Types

Our company offers LV, MV, HV transmission and distribution conductors, including:

ACSR Aluminium Conductor Steel Reinforced
AAAC All Aluminium Alloy Conductors
AAC All-Aluminium Conductors
AACSR Aluminium Alloy Conductor Steel Reinforced
ACSR/AS Aluminium Conductor Aluminium Clad Steel Reinforced

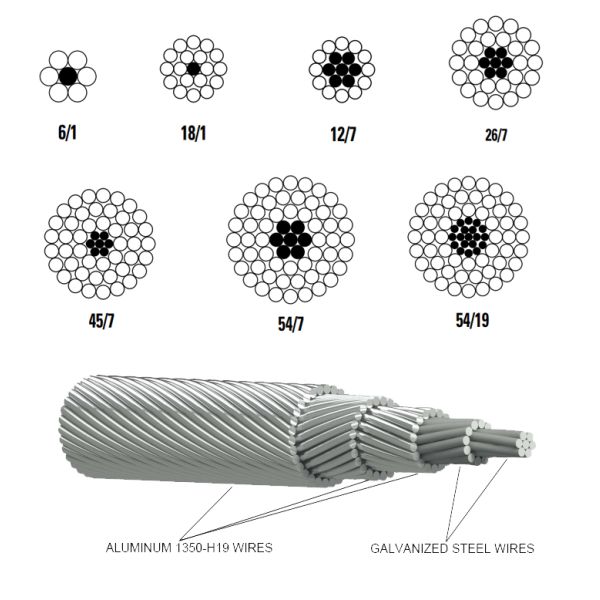

ACSR Conductor Details
ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor
Applications

ACSR conductors have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient insulation and maintenance, low cost, and large transmission capacity. They are also suitable for laying across rivers, valleys, and places where special geographical features exist.

Standards Compliance
  • ASTM B-232
  • BS EN-50182
  • CSAC 61089
  • AS/NZS 3607
  • DIN 48204
  • IEC 61089
  • GB/T 1179
  • ASTM B711
ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor
Technical Specifications
Area Standing and wire diameter Overall diameter Nominal breaking load
Nominal Actual Al/Steel Total Aluminum/Steel
16/2.515.00/2.5017.806/1.80 - 1/1.80
25/4.023.80/4.0027.806/2.25 - 1/2.5
35/6.034.30/5.7040.006/2.70 - 1/2.70
44/32.044.00/31.7075.7014/2.00 - 7/2.40
50/8.048.30/8.0056.306/3.20 - 1/3.20
50/3051.20/29.8081.0012/2.33 - 7/2.33
70/1269.90/11.4081.3026/1.85 - 7/1.44
95/1594.40/15.30109.7026/2.15 - 7/1.67
95/5596.50/56.30152.8012/3.20 - 7/3.20
105/75105.70/75.50181.5014/3.10 - 9/2.25
120/20121.06/19.80141.4026/2.44 - 7/1.90
120/70122.00/71.30193.3012/3.60 - 7/3.60
125/30127.90/29.80157.7030/2.33 - 7/2.33
150/25148.90/24.20173.1026/2.70 - 7/2.10
170/40171.80/40.10211.9030/2.70 - 7/2.70
185/30183.80/29.80213.6026/3.00 - 7/2.33
210/35209.10/34.10243.2026/3.20 - 7/2.49
210/50212.10/49.50261.6030/3.00 - 7/3.00
230/30230.90/29.80260.7024/3.50 - 7/2.33
240/40243.00/39.50282.5026/3.45 - 7/2.68
265/35263.70/34.10297.8024/3.74 - 7/2.49
300/50304.30/49.50353.7026/3.86 - 7/3.00
305/40304.60/39.50344.1054/2.68 - 7/2.68
340/30339.30/29.80369.1048/3.00 - 7/2.33
ACSR Bare Conductor Steel Reinforced Aluminum Overhead Transmission Line Conductor
